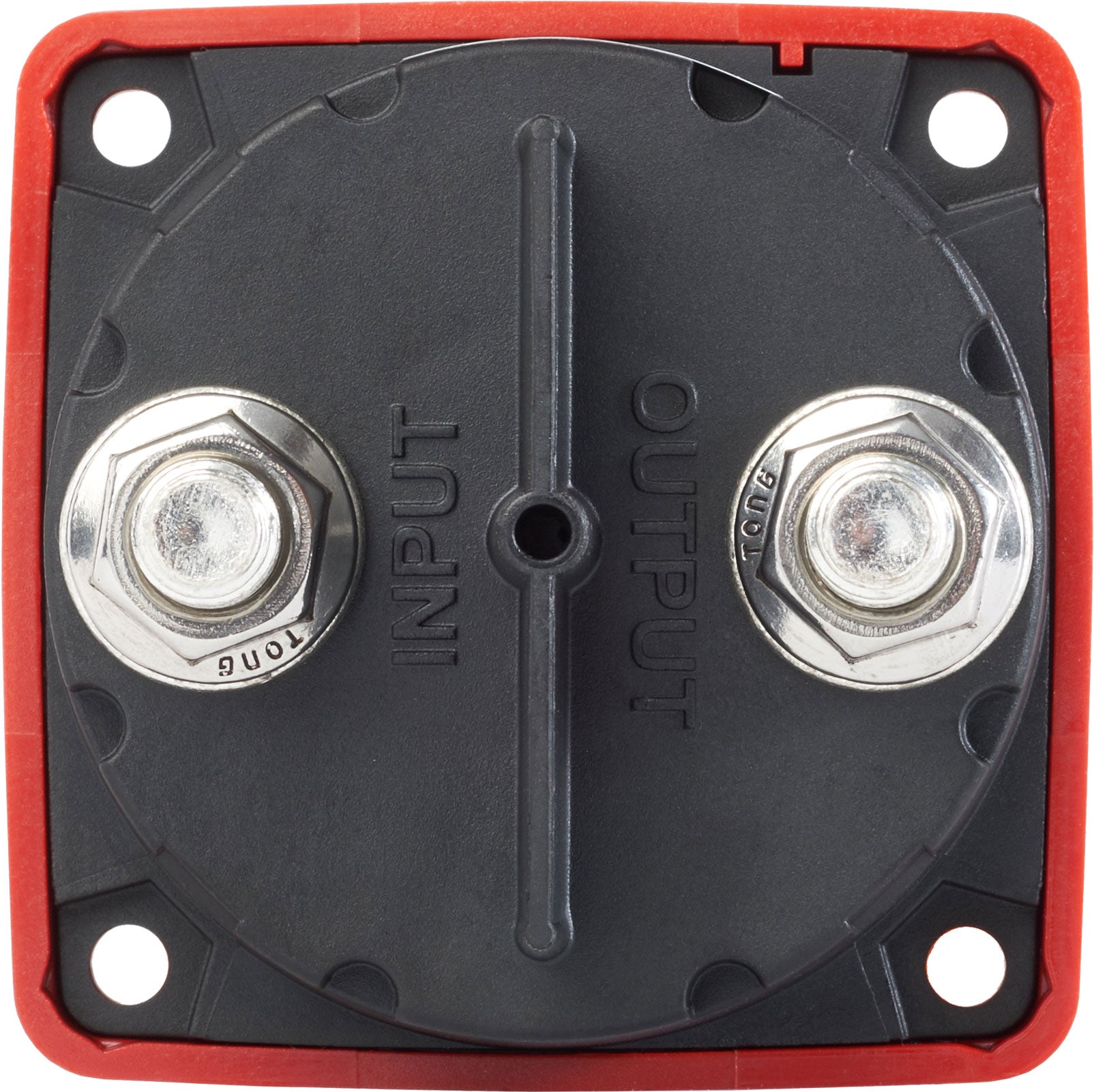

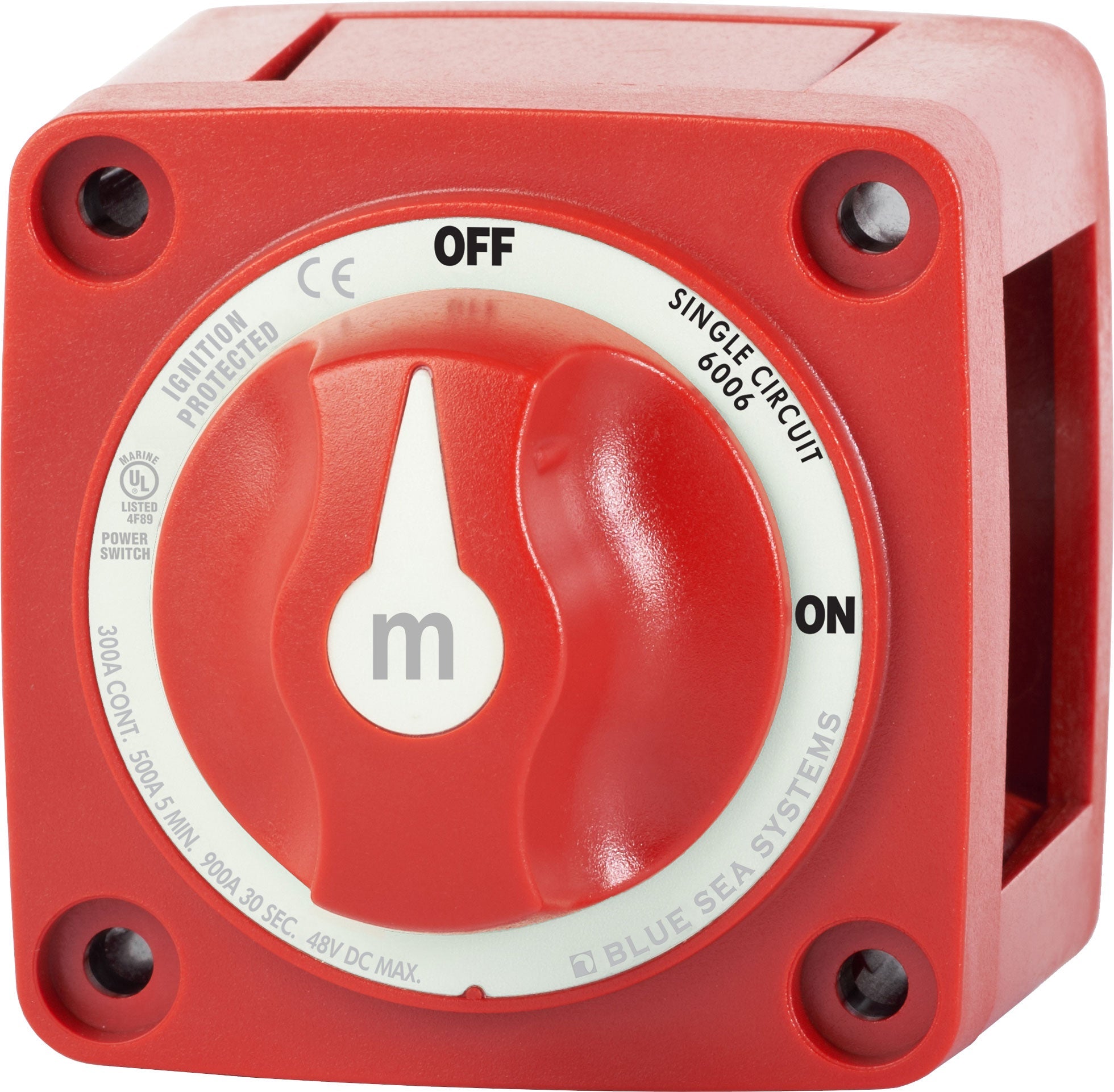

300 Ampere continuous rating for outboards and small gasoline or diesel engines. One-piece tin-plated copper stud design never loosens over time. Terminal studs accept 3/8" or M10 ring terminals. Features isolation cover with 3 removable sides. This Mini switch is 2-7/8" x 2-7/8". Ignition protected and UL Listed. Rated for 300 amps continuous, 500 intermittent, 1500 cranking.

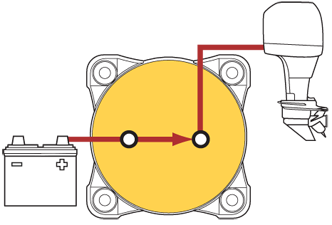

Switches a single battery to a single load group

• Ignition protected—safe for installation aboard gasoline powered boats

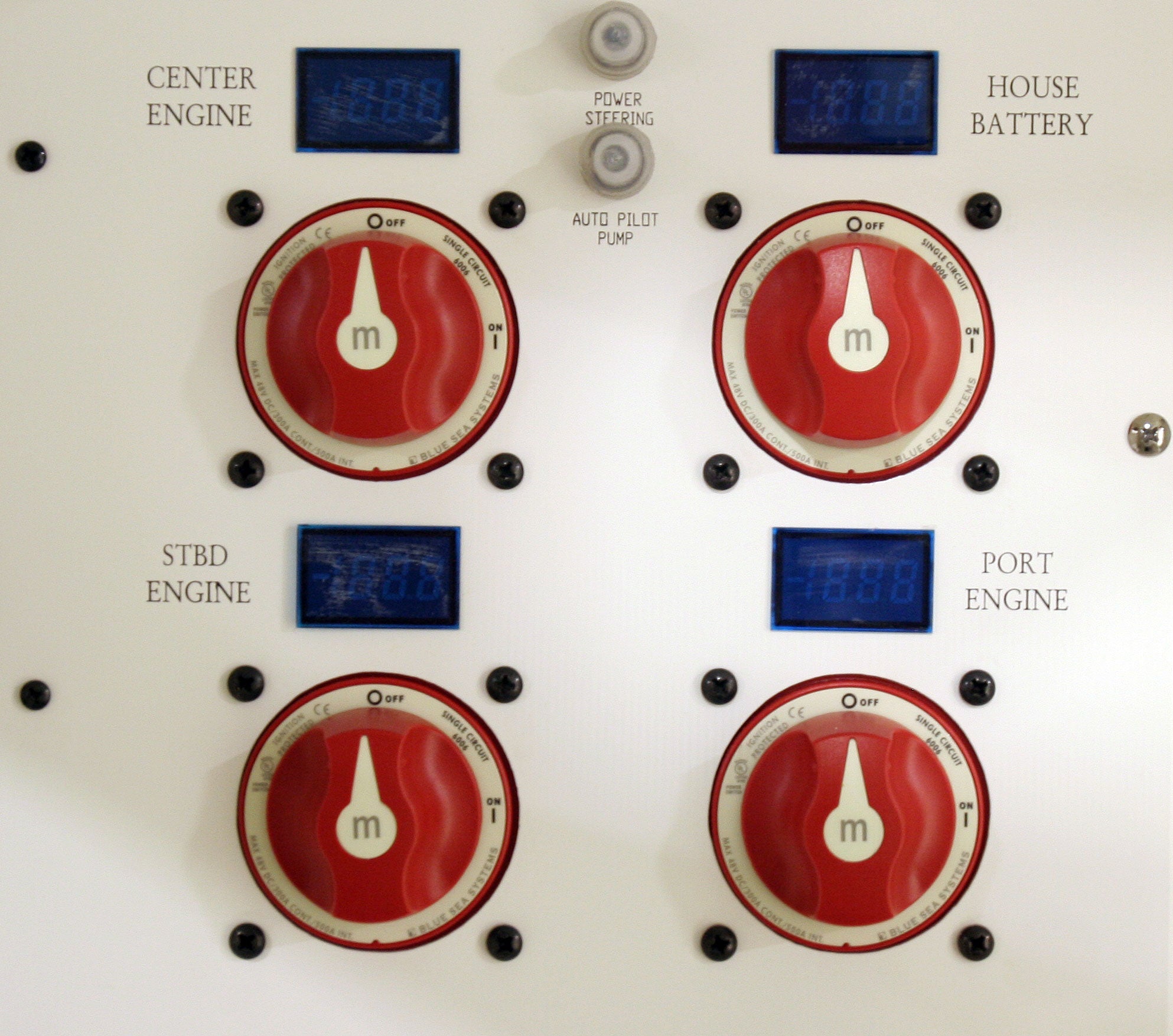

• Case design allows surface, front panel, or rear panel mounting
• Isolating cover with snap-on sections protects rear contacts


  Switch Type	Single Circuit ON-OFF
  Color	Red
  Switch Positions	2
  Battery Combine	No
  Alternator Field Disconnect	No
  Maximum Voltage	48V DC
  Stud Size	3/8"
  Terminal Stud Torque	120 in-lb (13.56 Nm)
  Continuous Rating	300A
  Intermittent Rating	500A (5 min)
  Starting Rating 30 sec	900A
  Battery Inputs	1
  Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
  Cable Size to Meet Ratings	4/0 AWG (120mm²)
  Mounting Holes	Accept #10 Screw
  Stud Material	Tinned Copper
  Stud Torque	120 in-lb (13.56 Nm)
  Switching Rating	25A
  Terminal Stud Size	3/8" - 16 (M10)
